Introducing Afri-Lok700™ -the ultimate concealed fix solution that provides superior performance and durability. Featuring deeper stiffener ribs and sharper shoulders for improved anchor engagement. Afri-Lok700™ has a great water-carrying capacity, allowing for a roof slope as low as 2°. Installing Afri-Lok700™ is a breeze thanks to its three-quarter clip design that ensures ease of installation.
Afri-Lok700™ is designed to withstand high wind loads, providing improved security and peace of mind. Afri-Lok700™ is versatile. It can be spring-curved or draped onto a 45m radius in the convex and 60m in the concave and can even be cranked to a minimum radius of 450mm. With its water-tight, long-spanning, wide-covering and lightweight design, Afri-Lok700™ is the perfect choice for any roofing application.
When it comes to roofing or cladding projects, Afri-Lok 700™ is the ideal choice for both commercial and residential use. This profile, also known as concealed fix, offers numerous benefits and requires no piercings from screws. Instead, the sheet is securely held in place by clips that are fixed to the purlins of the structure. One of the most significant advantages of using Afri-Lok 700™ is that it eliminates leaks caused by heat expansion and contraction. In addition, the absence of fasteners means there are no leaks caused by over-tightening, which can be a common issue with other roofing or cladding solutions. From an aesthetic perspective, the seamless effect created by no end laps or fixtures is truly pleasing to the eye. The deep wide panned trapezoidal profile of Afri-Lok 700™ is particularly well-suited for low roof slopes, as it offers excellent drainage capabilities. In fact, roof slopes can be as little as 2degrees without compromising performance or functionality. All in all, Afri-Lok 700™ is the superior choice for anyone seeking a reliable, long-lasting roofing or cladding solution. Its ability to prevent leaks, its attractive appearance, and its exceptional drainage capabilities make it the clear choice for any construction project.
We take immense pride in our clips, which are designed to provide exceptional quality and reliability. Our full 700mm length clips are equipped with interlocking holes that maintain a consistent 700mm pitch. This helps prevent any “snaking” issues and ensures a swift installation process. In addition, our clips are available in shorter, more economical lengths that do not interlock, perfect for shorter roof spans. SABS approved for their superior quality and durability. Manufactured from o.8mm Z275 galvanised material or 0.8mm AZ200 Zincal coatings.

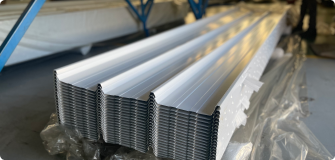

Afri-Lok700™ is roll formed from ISQ550 / G550 material and has an effective cover width of 700mm, 41mm high incorporating two stiffener ribs in each of its three pans with centres of 233.5mm. Afri-Lok700™ is available in Color plus, ZincAL, Galvanized and Chromadek with gauges from 0.47mm – 0.58mm in thickness. Afri-Lok700 could be factory cranked and curved to a minimum radius of 450mm but cannot be reverse-cranked or curved. Afri-Lok700 sheet consists of a male and female side, the male rib includes salient spurs to ensure improved engagement. IBCORR Afri-Lok has pronounced stiffener ribs to help combat oil canning, a known defect in broad panned profiles. This profile has prominent shoulders for positive engagement.
Purlin spacing:
350 mm
400 mm
400 mm
450 mm
600 mm
1900 mm
2000 mm
2300 mm
2500 mm
2500 mm
1600 mm
1700 mm
1900 mm
2100 mm
2100 mm
1300 mm
1400 mm
1500 mm
1700 mm
1800 mm
